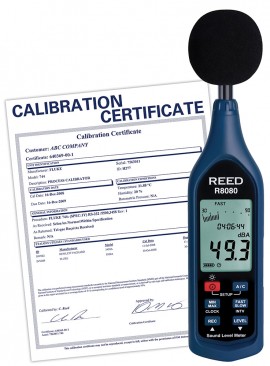

Picture of Reed R8080 Data Logging Sound Level Meter with Bargraph
Picture of Reed R8080 Data Logging Sound Level Meter with Bargraph Picture of Reed R8080 Data Logging Sound Level Meter with Bargraph Picture of Reed R8080 Data Logging Sound Level Meter with Bargraph Picture of Reed R8080 Data Logging Sound Level Meter with Bargraph

Reed R8080 Data Logging Sound Level Meter with Bargraph

The Reed R8080 Data Logging Sound Level Meter with Bargraph has the ability to record samples on internal memory and keep track of registered readings with a time and date stamp. The R8080 features user selectable sampling rates and the option to track live measurements via the included PC interface software.

  • High accuracy of ±1.4 dB meets Type 2 standards
  • Triple range measurement (60dB dynamic range)
  • A & C frequency weighting
  • Fast & Slow time weighting
  • Record up to 64,000 datapoints and keep track with internal time and date stamp
  • User selectable sampling rate from 1 to 60 seconds
  • 0.5" (12.7mm) electret condenser microphone
  • Easy-to-read backlit LCD display
  • Digital analog bargraph
  • Min/Max hold and auto shut off
  • Tripod mount for long-term monitoring
  • Low battery indicator
  • Includes microphone windshield ball, battery and carrying case
Part number: R8080
$395.00
Attribute nameAttribute value

Specifications

Range :Low: 30 to 90 dB; Med: 50 to 110 dB; High: 70 to 130 dB; Full: 30 to 130 dB
Dynamic Range :60 dB (in each range)
Resolution :Digital: 0.1 dB; Analog: 2 dB
Accuracy :±1.4 dB
Frequency Range :20 Hz to 8 kHz
Frequency Weighting :A, C
Time Weighting :Fast/Slow (125 ms and 1 s)
Dimensions :10.4" x 2.5" x 1" (264 x 63 x 29 mm)
Weight :8.8 oz (245 g)
